Features
LED LIGHTING
Three 3.5-watt LED lights to illuminate your cooking area and save energy.
CONVERTIBLE
Vent out or recirculating (ductless) option with carbon filters (not included).

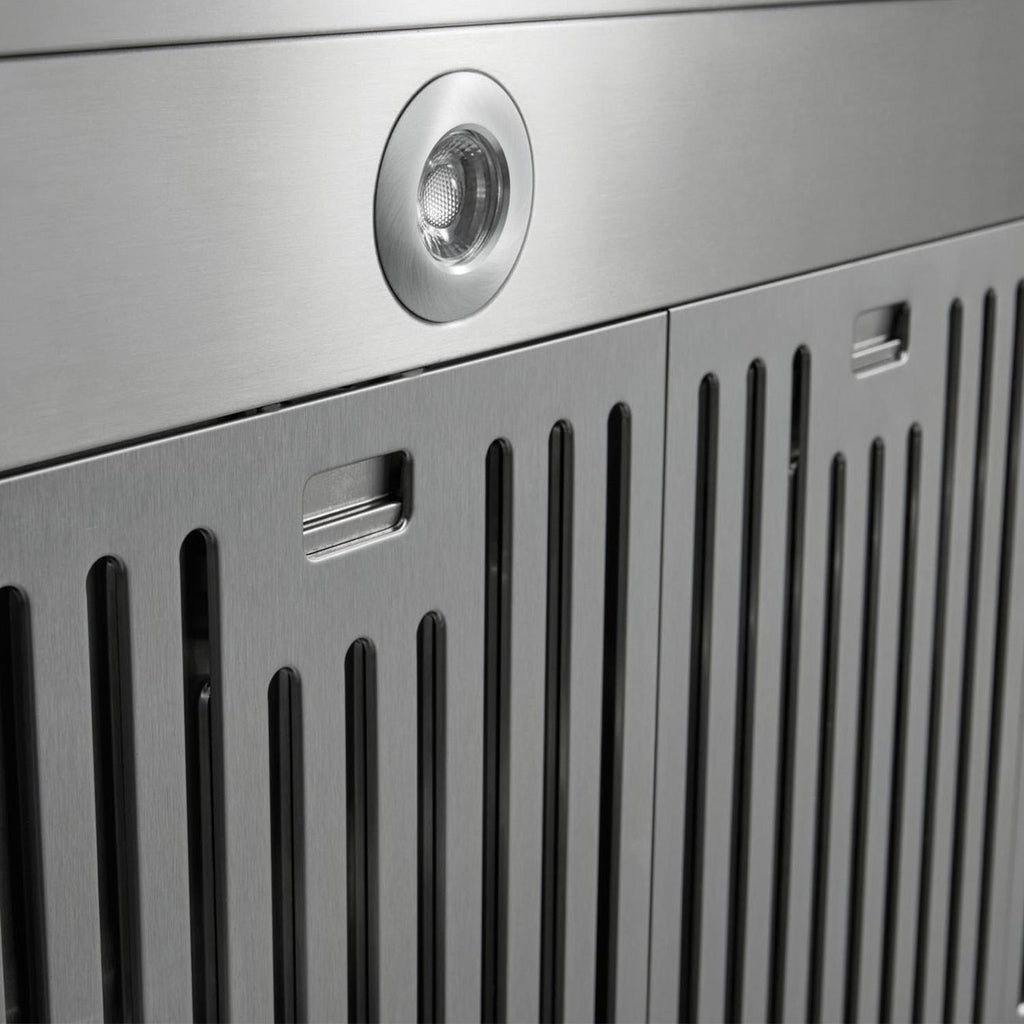

COMMERCIAL-STYLE BAFFLE FILTER
Large, commercial-style 430 grade stainless steel baffle filter maximizes air flow and grease filtering while the hood is in operation.
PUSH BUTTON CONTROLS
Easy-to-operate push button controls for power, fan and light.
7-INCH DUCT VENT
7-inch round duct vent for better ventilation performance and efficiency.
Specifications
General
Blower Included
Yes
Airflow
1000 CFM
Style
Chimney
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Wall Mount
Features
Ducting Information
7-inch Round
Speeds
• Low speed: 460 CFM (50 dB)
• Medium speed: 650 CFM (59 dB)
• High speed: 1,000 CFM (67 dB)
• Medium speed: 650 CFM (59 dB)
• High speed: 1,000 CFM (67 dB)
Additional Information
• Powerful Suction
• Blower type: Internal
• Three 3.5-watt LED lights
• Commercial-style Baffle Filter
• Filter type: 430SS Baffle filter x 3
• Push Button Controls
• Control type: Button, No auto shut off, No delayed shut off
• Blower type: Internal
• Three 3.5-watt LED lights
• Commercial-style Baffle Filter
• Filter type: 430SS Baffle filter x 3
• Push Button Controls
• Control type: Button, No auto shut off, No delayed shut off
Electrical Information
Information
• Power: 110V
• Frequency: 60HZ
• Amperage: 6A
• Frequency: 60HZ
• Amperage: 6A
Certifications and Approvals
Information
CSA
Accessories
Optional
• Recirculation duct
• Charcoal Filter: FT05
• Charcoal Filter: FT05
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
14 inch(es) / 35.56 cm
Depth
20.5 inch(es) / 52.07 cm
Shipping Dimensions
Weight
64.99 lb(s) / 29.48 kg
Warranty
Warranty
2-Year limited for parts only
