Features

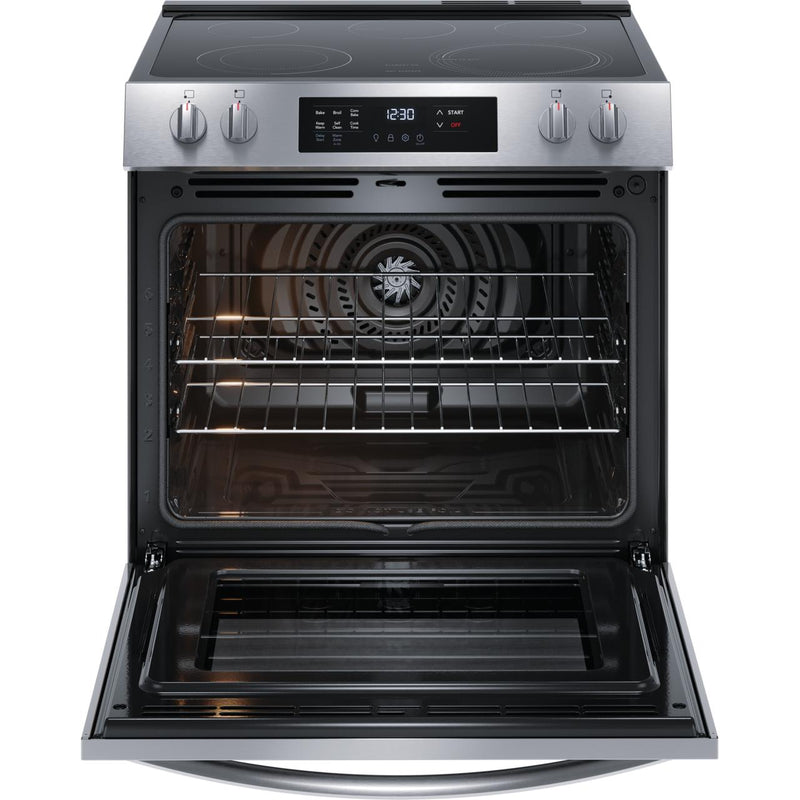

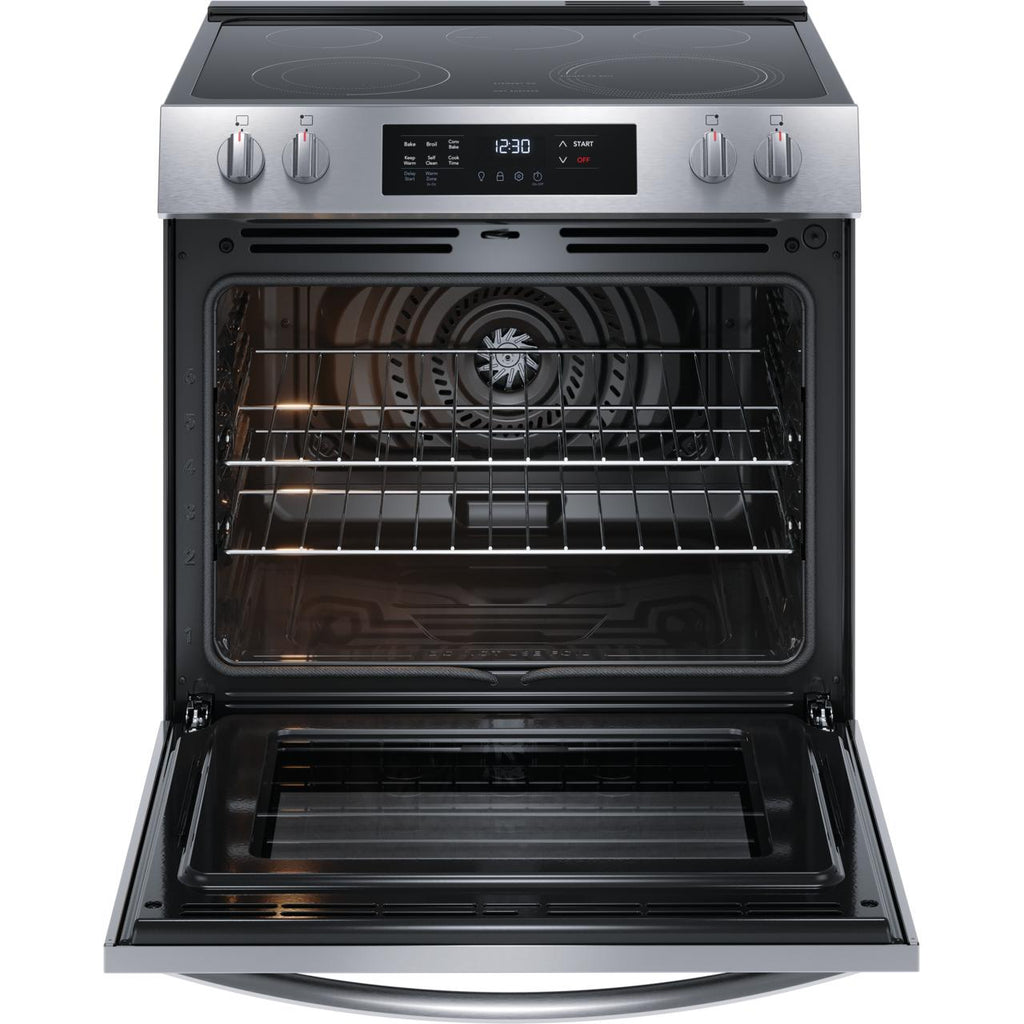

ACHIEVE BETTER BAKING RESULTS WITH CONVECTION BAKE
Get faster, more even baking results with our fan convection baking system.
CONSISTENT RESULTS WITH THE EVENTEMP™ COOKTOP ELEMENT
With our EvenTemp™ cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

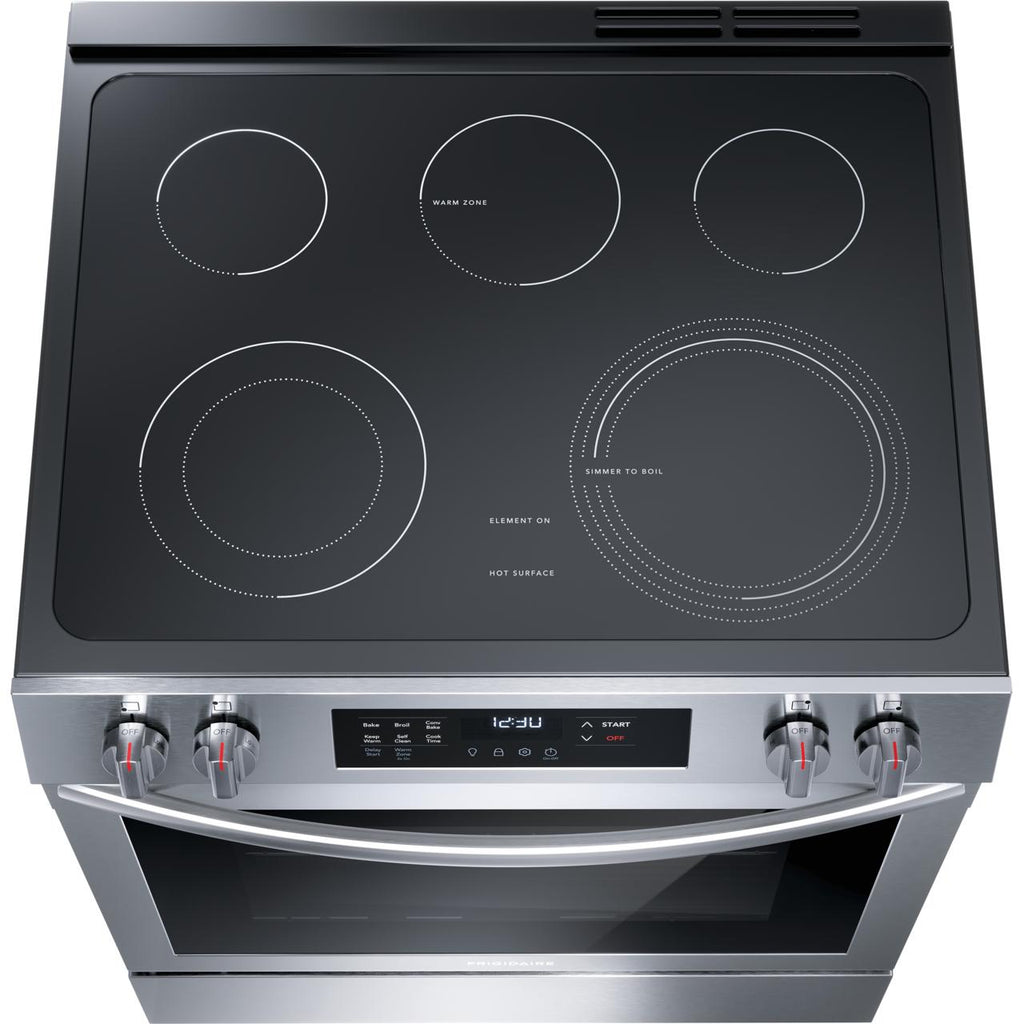

FLEXIBLE FIVE ELEMENT COOKTOP (3,200W)
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp™ element, a Dual Expandable Element and a convenient Warm Zone.
ONE-TOUCH SELF CLEAN (3 HOURS)
A convenient 3-hour self clean cycle cleans your oven, so you don't have to.

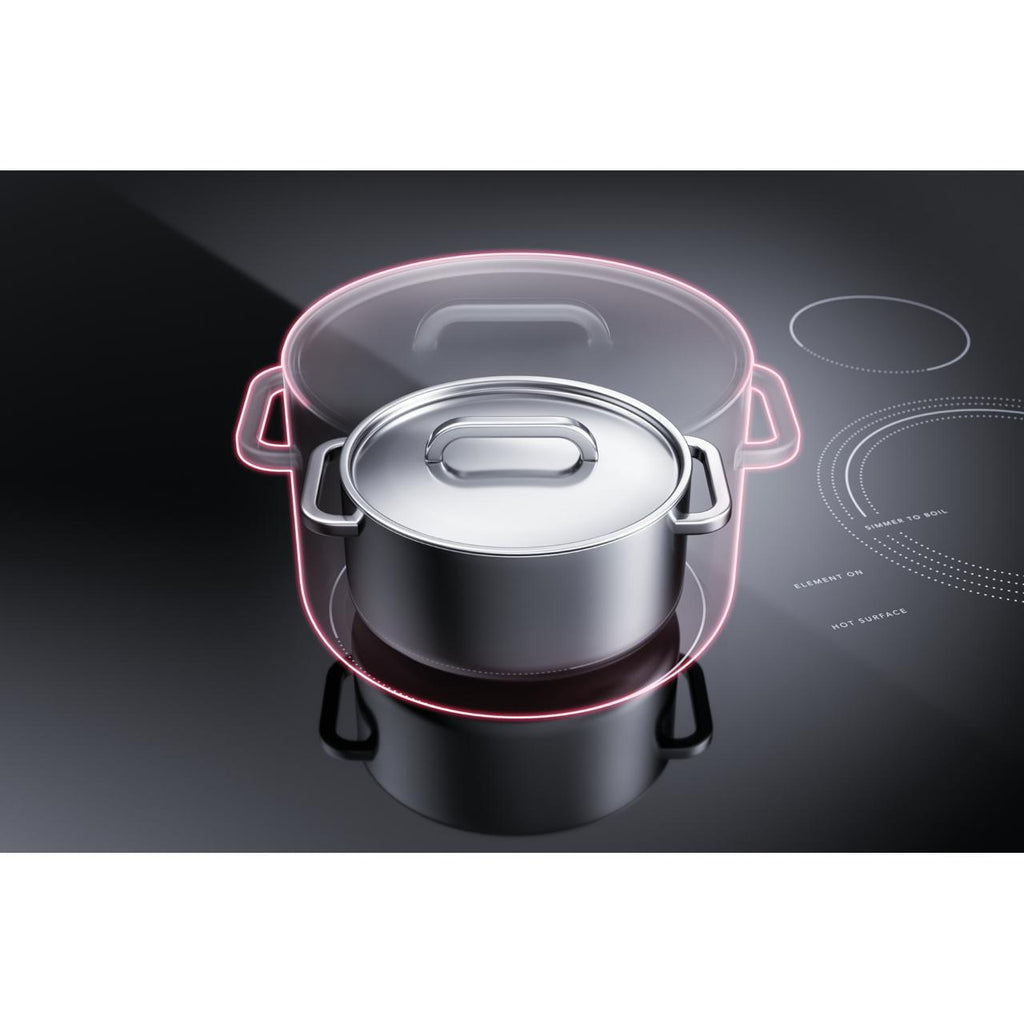

SPACEWISE® DUAL EXPANDABLE ELEMENT (6"/9")
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
EXTRA WIDE STORE-MORE™ STORAGE DRAWER
Our redesigned Store-More™ Storage drawer is now even wider - allowing you to store any unused oven racks or baking trays.
Additional Features
CLEANUP IS EASIER WITH HIDDEN BAKE
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
COOKTOP KEEP WARM ZONE
Keep food warm until everything - and everyone - is ready.
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right Front Element: 3,200 Watts
• Right Rear Element: 1,200 Watts
• Left Rear Element: 1,200 Watts
• Center Rear Element: 100 Watts
• Left Front Element (Large): 3,000 Watts
• Left Front Element (Small) 1,400 Watts
• Right Rear Element: 1,200 Watts
• Left Rear Element: 1,200 Watts
• Center Rear Element: 100 Watts
• Left Front Element (Large): 3,000 Watts
• Left Front Element (Small) 1,400 Watts
Burner/Element Size
• Right Front Element: 9"
• Right Rear Element: 6"
• Left Rear Element: 6"
• Left Front Element (Large): 9"
• Left Front Element (Small): 6"
• Right Rear Element: 6"
• Left Rear Element: 6"
• Left Front Element (Large): 9"
• Left Front Element (Small): 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.3 cu. ft.
Number of Ovens
Single

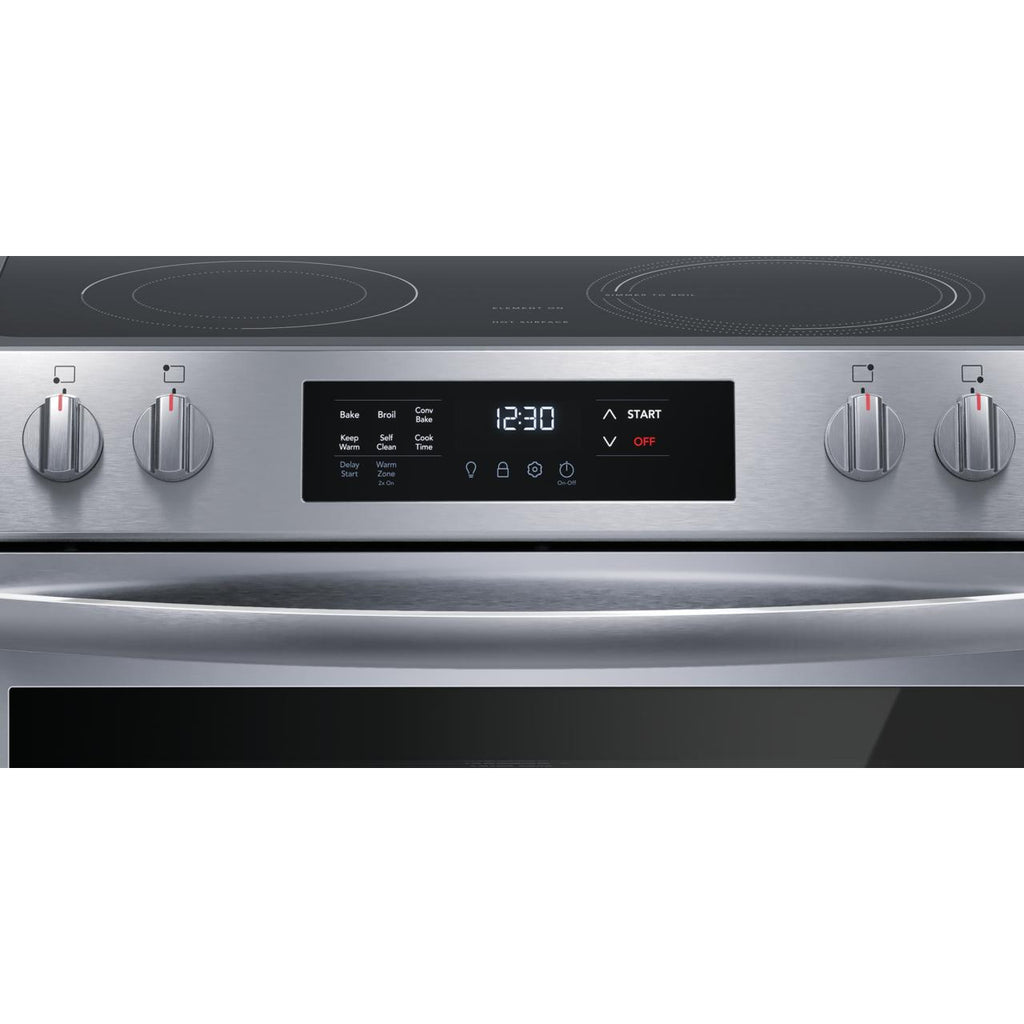

Programs
• Bake
• Bake Time
• Broil
• Convection Bake
• Cook Time
• Delay Clean
• Delay Start
• Keep Warm
• Preheat
• Bake Time
• Broil
• Convection Bake
• Cook Time
• Delay Clean
• Delay Start
• Keep Warm
• Preheat
Features
Technologies
Convection Technology
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• 6 Rack Positions
• Hidden Bake Element
• Kitchen Timer
• Door Lock
• Temperature Display
• Lockout
• Element On Indicator Light
• Hot-Surface Indicator Light
• Keep Warm Zone Light
• Hidden Bake Element
• Kitchen Timer
• Door Lock
• Temperature Display
• Lockout
• Element On Indicator Light
• Hot-Surface Indicator Light
• Keep Warm Zone Light
Drawer Features
Storage
Yes
Electrical Information
Information
• Amps @ 120 Volts 10 Amps
• Amps @ 240 Volts 13 Amps
• Minimum Circuit Required 40 Amps
• Voltage Rating 240 V
• Amps @ 240 Volts 13 Amps
• Minimum Circuit Required 40 Amps
• Voltage Rating 240 V
Certifications and Approvals
Information
• UL Listed
• RoHS
• RoHS
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
35.62 inch(es) / 90.48 cm
Depth (Without Handles)
26 inch(es) / 66.04 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Weight
189.99 lb(s) / 86.18 kg
Additional Dimensions
• Depth With Door 90° Open: 47 5/16"
• Oven Interior Height: 8 1/8"
• Oven Interior Width: 25 3/16"
• Oven Interior Depth: 19 7/8"
• Maximum Height: 36 3/8"
• Oven Interior Height: 8 1/8"
• Oven Interior Width: 25 3/16"
• Oven Interior Depth: 19 7/8"
• Maximum Height: 36 3/8"
Warranty
Warranty
1 Year Parts and Labor
UPC
UPC#
012505514340
